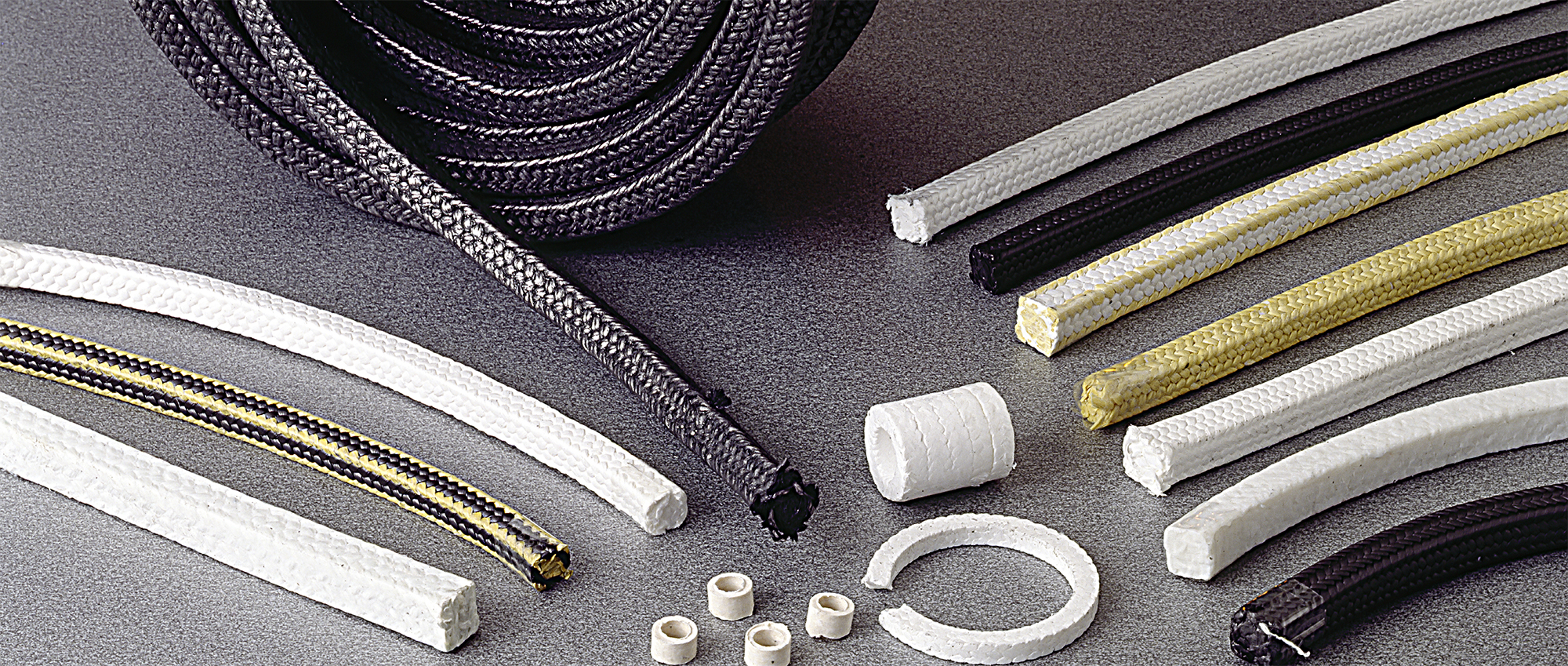

PURE PTFE BRAIDED PACKINGS
Tespe is specialized in the production of DYNAPACK® Pure PTFE Braided Packings for valves and pumps.
Packing in pure PTFE yarn impregnated with PTFE dispersion. For oxygen ask for our type 3131-O.
Applications: Valves, centrifugal pumps shafts, mixers, agitators, high pressures, alternating pistons, registration valves, aggressive chemical substance, steam, solvents.
 |
 |
 |
|
| P bar |
300
|
200
|
50
|
| T °C |
-200/+280
|
||
| PH |
0÷14
|
||
| V m/s |
2
|
1.5
|
25
|
Packing in pure PTFE yarn impregnated with PTFE dispersion and lubricant. For food ask for our type 3132-AL.
Applications: Centrifugal pumps, air and gas valves, oxidizing and aggressive substances, concentrated acids.
|
|
|
|
|
| P bar |
20
|
100
|
50
|
| T °C |
-200/+280
|
||
| PH |
3÷12
|
||
| V m/s |
1.5
|
2
|
20
|
Packing in pure PTFE Graphited yarn obtained by incapsulating Graphite in pure expanded PTFE.
Applications: High velocity water centrifugal pumps, steam, oils, solvents, all products containing acids and alkali, except oleum, nitric acid and turpentine.
|
|
|
|
|
| P bar |
300
|
200
|
50
|
| T °C |
-200/+280
|
||
| PH |
0÷14
|
||
| V m/s |
1
|
2
|
8
|
Packing in pure PTFE Graphited yarn obtained by incapsulating Graphite in pure expanded PTFE - No lubricant.
Applications: Common valves, hot water and steam valves, oxigen valves, solvents, pumps, pistons pumps, alternating motions, nutrition, dye, lubricant, and chemical industries, agitators, all fluids except nitric acid, turpentine and fluorine.
|
|
|
|
|
| P bar |
20
|
100
|
50
|
| T °C |
-200/+280
|
||
| PH |
3÷12
|
||
| V m/s |
1.5
|
2
|
20
|
