GLASS FIBER TEXTILE
GLASS FIBER TEXTILE PRODUCTS

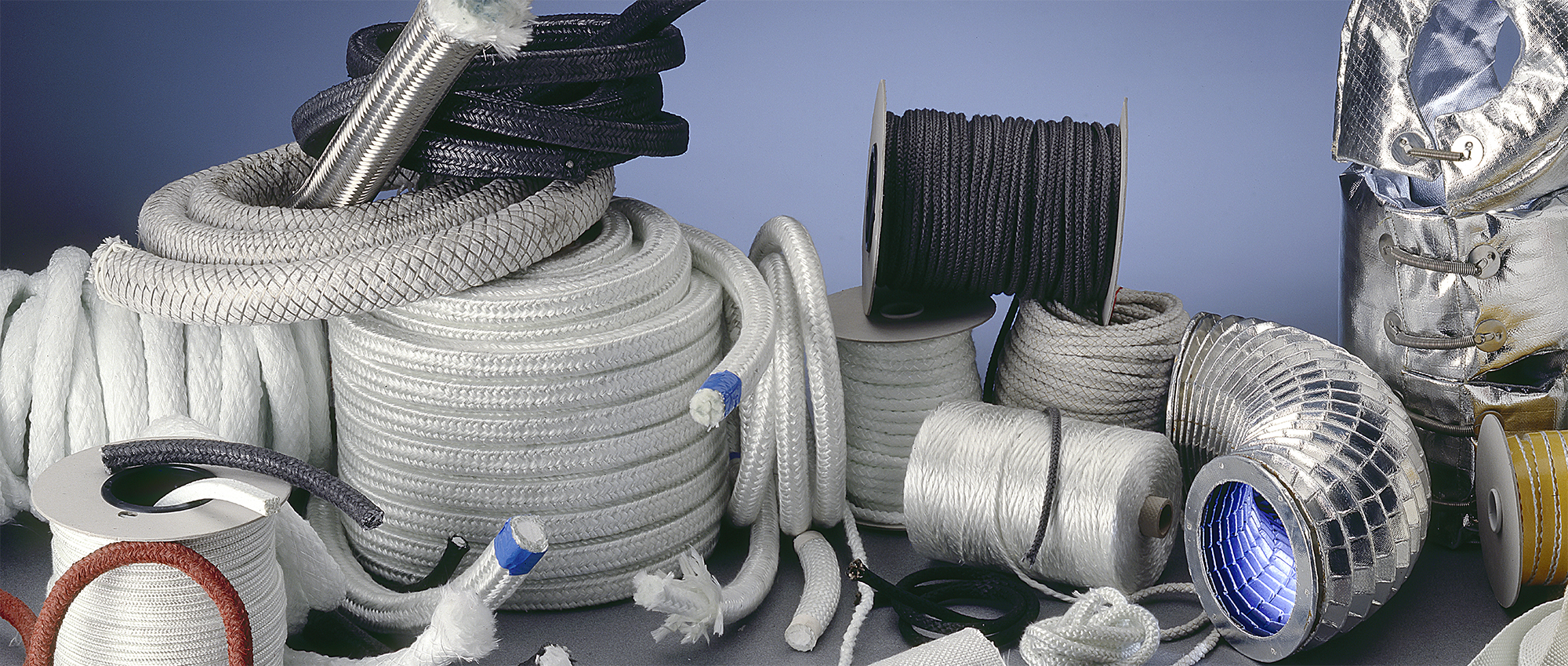

A complete range of Glass Fiber Textile Products for thermal insulation and seals for high temperatures: Ropes, Braids, Sleeves, Tapes, Fabrics and Insulating Products
The base material of Tespe Glass Fiber Textile Products consists of 6 - 9 microns “E” Glass Fiber Filament Yarns that can be voluminized, texturized, plyed, reinforced with steel wire, etc.
They are inorganic, steril, incombustible, totally Asbestos-Free and contain neither toxic matter nor heavy metals. Moreover, they do not cause skin irritations.
Basic composition of "e" glass fiber
SiO2
53-55%
Al2O3
14-15.5%
CaO-MgO
20-24%
B2O3
6.5-9%
Fe2O3 - TiO2
< 1%
Na2O-H2O
< 1%
General properties of "e" glass fiber
Color
White
Max. Temperature
550°C
Melting Point
1200°C
Diameter-filaments
> 6-9 micron
Tensile strength-virgin filament
3400MPa
Young's modulus
74000 Mpa
Thermal conducivity
1,0 W/m °K
Fire reaction
incombustible
Loss on ignition
< 1,5%
Dielectric rigidity-glass in bulk
60-100 KV/mm
Solvent resistence
good
Bases resistence
good
Acid resistence
good - except fluoridric acid
General properties of "E" glass fiber textile products
High mechanical strengt
Incombustible
Low thermal conducivity
Good resistence to chemical agents
Good electrical properties
Good dimensional stability
High thermal resistence
Good flexibility
Max. temperature
550° C
